Honda Crv 2007 Fuse Box. UNDER-BONNET FUSE BOX diagram. UNDER-HOOD FUSE BOX diagram Honda CR-V fuse box diagrams change across years pick the right year of your vehicle. For the Honda CR-V 2007 2008 2009 2010 2011 2012 model year. The fuse label 2 is attached under the steering column.

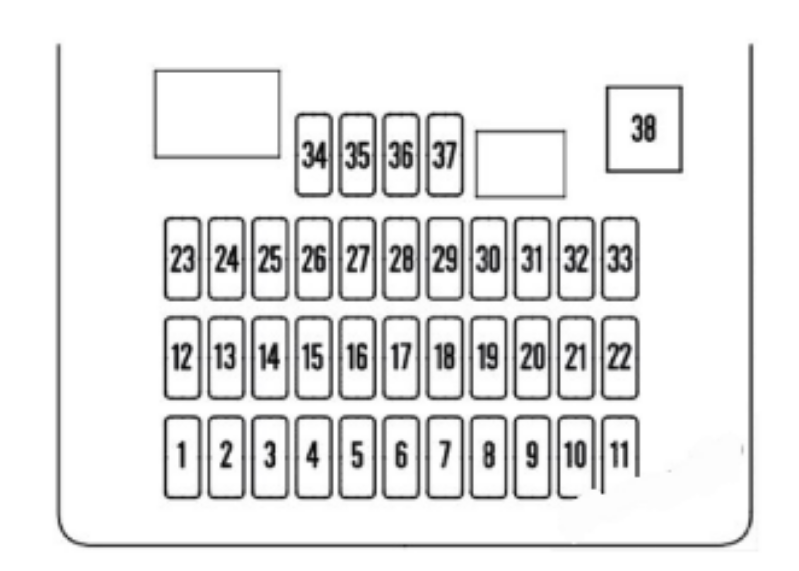

Fuse box diagram fuse layout location and assignment of fuses and relays Honda CR-V Mk3 2007 2008 2009 2010 2011. 2007 2008 2009 Interior fuse box Number Ampere rating A Circuits Protected 1 75 Power Window Relay 2 15 Fuel Pump 3 10 ACG 4 75 ABSVSA 5 15 Heated Seats 6 20 Front Fog Lights 7 Not used 8 10 Rear. Electrical components such as your map light radio heated seats high beams power windows all have fuses and if they suddenly stop working chances are you have a fuse that has blown out. Honda CR-V 2003 Main Fuse BoxBlock Circuit Breaker Diagram Honda CR-V 2004 Fuse BoxBlock Circuit Breaker Diagram Honda CR-V 2010 Underhood Fuse BoxBlock Circuit Breaker Diagram Honda Merc C240 2004 Engine Fuse BoxBlock Circuit Breaker Diagram. Used panel popper tool available at any AZ or OReily to drop panel below steering column after removing two small screws at bottom of that panel. Honda crv fuse box - welcome to my website this post will certainly discuss about honda crv fuse box.
Passenger Compartment Fuse Box.
The video above shows how to replace blown fuses in the interior fuse box of your 2009 Honda CR-V in addition to the fuse panel diagram location. For the Honda CR-V 2002 2003 2004 20052006 model year. UNDER-HOOD FUSE BOX diagram Honda CR-V fuse box diagrams change across years pick the right year of your vehicle. My early 2007 CRV has a nearly solid bulkhead behind the left end trim panel that the video shows being removed to give access to the fuse block. The fuse label 2 is attached under the steering column. Fuse box diagram location and assignment of electrical fuses for Honda CR-V 2007 2008 2009 2010 2011.
